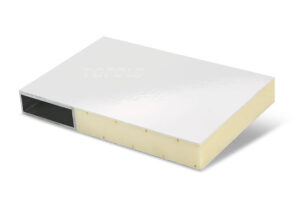

Our fiberglass-reinforced XPS foam composite panels, designed specifically for expedition trucks, feature a precisely embedded high-strength aluminum tube skeleton, effectively enhancing overall structural stability and deformation resistance. Whether operating in deserts, highlands, or icy terrain, this reinforced composite panel provides solid structural support and reliable thermal insulation, making it an ideal material for high-performance expedition vehicles.
Specifications
- Thickness: 40mm (Customizable: 20-150mm).
- Length: ≤12m.
- Width: ≤2.6m.
- Outer Skin: 2.5mm flat FRP sheet.
- Inner Skin: 1.5mm flat FRP sheet.
- Core: XPS foam (density: 40kg/m³).
- Embedded Part: 100mm x 35mm x 3.0mm aluminum tube.
- Area Weight: 13.3kg/㎡.

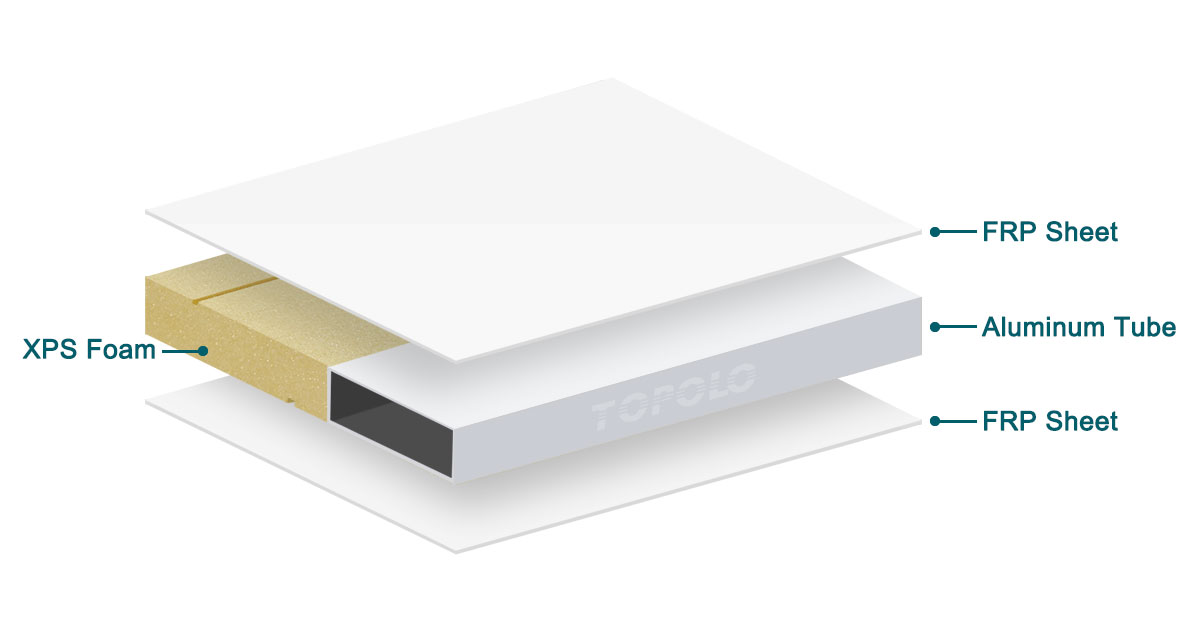

Description
- FRP Skin
The surface layer utilizes a smooth gelcoat-coated FRP skin, which not only offers a smooth and sleek appearance but also boasts excellent water, UV, and corrosion resistance.
- XPS Foam Core
The XPS foam used as the thermal insulation layer not only maintains excellent thermal isolation but also significantly reduces vehicle weight, making the expedition truck more efficient and reducing energy consumption during long-distance travel.

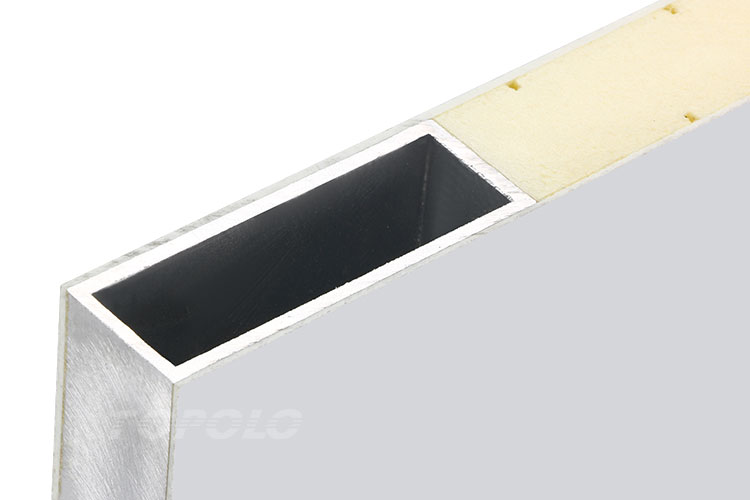

- Embedded Aluminum Tube
The embedded aluminum tubes within the composite panel significantly enhance the panel’s structural strength, strengthening its resistance to external impact and pressure. The lightweight and high-strength characteristics of the aluminum tubes make this reinforcement possible without adding additional weight.
TOPOLOGROUP composite panels are designed for modular expedition truck body assembly. Each panel undergoes high-precision CNC cutting and structural optimization, enabling rapid assembly and secure connections, significantly improving assembly efficiency.
