Steel Plywood Panels
Home > Materials > Plywood Sandwich Panels
☑ Stainless steel facing
☑ Color Coated Steel Facing
☑ Galvanized Steel Facing

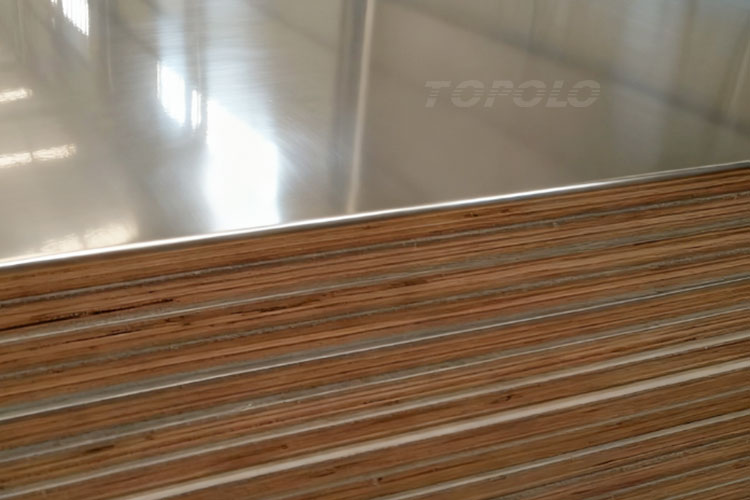

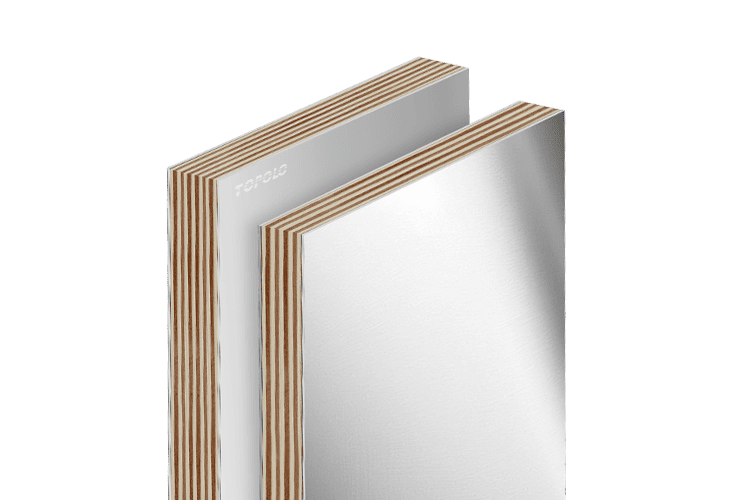

Steel plywood panels are made by gluing thin steel sheets together. They combine the strength of steel with the stability of plywood, making them a durable and versatile building and interior design material. These panels are available with either single or double steel facings.
☑ Impact and abrasion resistant
☑ Bending and deformation resistant
☑ Strong load-bearing capacity

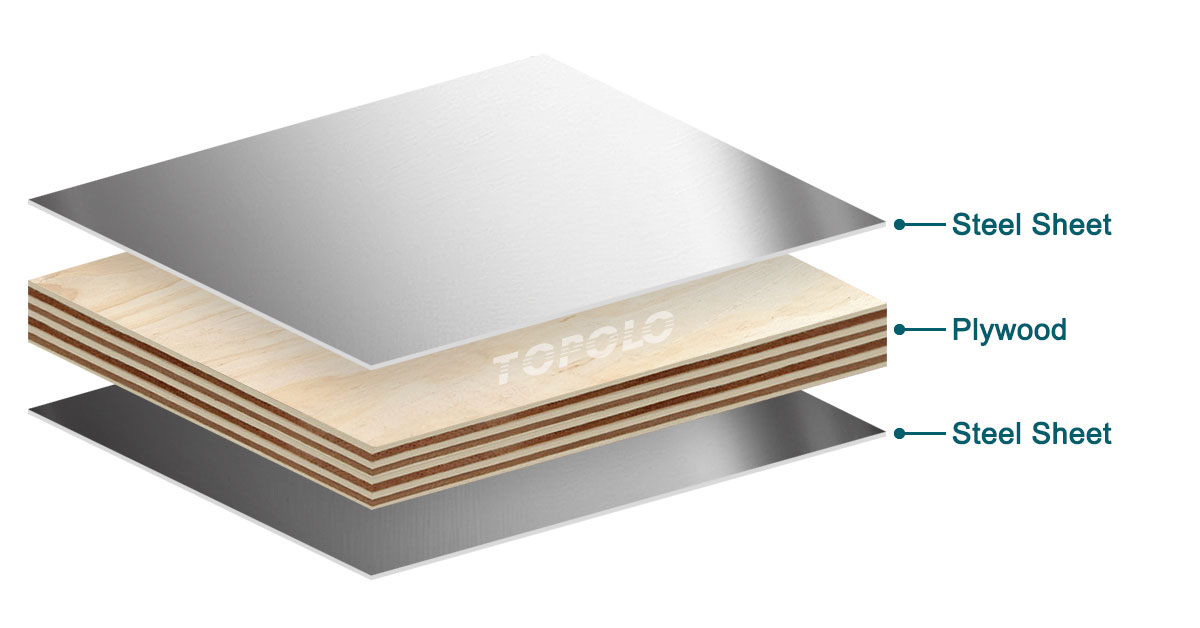

Schematic Diagram
Specifications
| Facing | Stainless steel, pre-painted steel, galvanized steel. |
| Core | Plywood (Poplar, pine, eucalyptus, camphor, lauan, beech, oak, rubberwood, etc.) |
| Width | 1120x2440mm or customizable |
| Thickness | 5.0-50mm |
High-quality marine-grade plywood
☑ Flame-retardant: Flame retardant-added to achieve a B1 flame retardancy rating, inhibiting flame spread and reducing smoke in the event of a fire.
☑ Waterproof: Treated with a special waterproof adhesive, the thickness expansion rate after water absorption is ≤12% (much lower than the 20% of ordinary plywood).

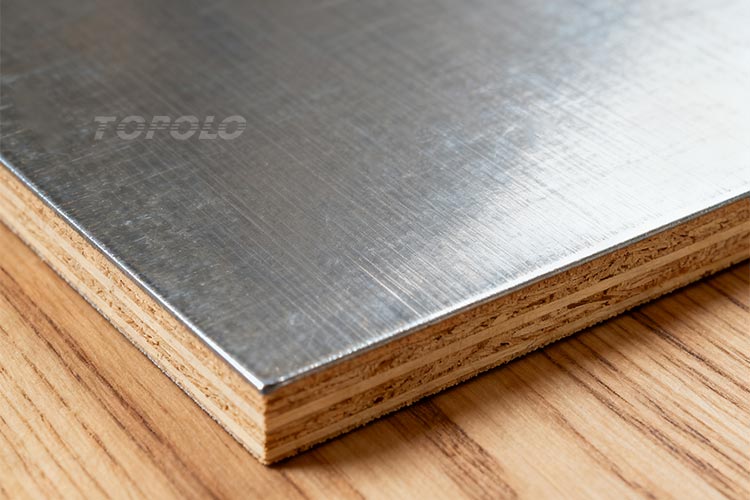

☑ Stainless steel facing
- Excellent corrosion resistance and high strength.
- Modern polished appearance, combining beauty and practicality.
- Common materials: 201, 304, 316.
- Optional surface finishes: brushed, mirror, sandblasted, matte, etc.

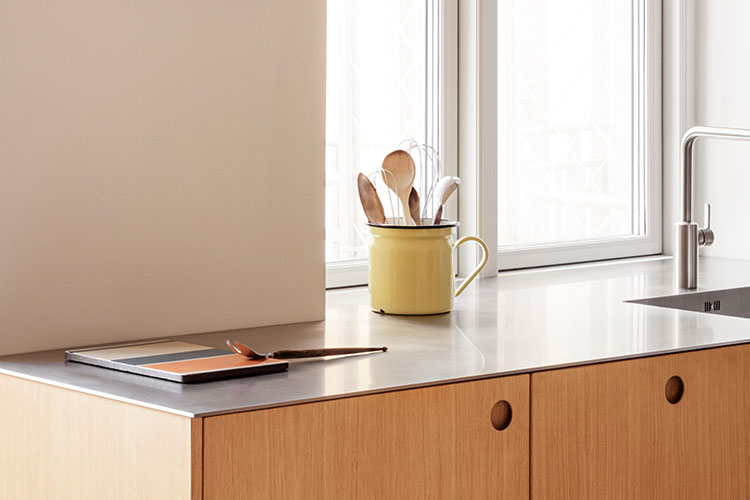

- Suitable for environments requiring high hygiene, safety, and durability, such as restaurants, healthcare facilities, and public facilities.
☑ Color Coated Steel Facing
- Combines decoration and protection.
- Vibrant colors with a scratch- and abrasion-resistant surface.
- Material: PPGI (Pre-Painted Galvanized) steel, PPGL (Pre-Painted galvalume) steel.
- Surface treatment: PE, PVDF.
- Color system: RAL international standard color system, meeting diverse design needs.
☑ Galvanized Steel Facing
- Provides cost-effective rust protection.
- Material: Zinc-coated steel (galvanized steel), aluminum-zinc-coated steel (galvalume steel), aluminum-magnesium-zinc-coated steel (ZAM-coated steel).
- Suitable for long-term outdoor use in humid or corrosive environments.
Applications
☑ Furniture Manufacturing: Durable tables, cabinets, and decorative panels.

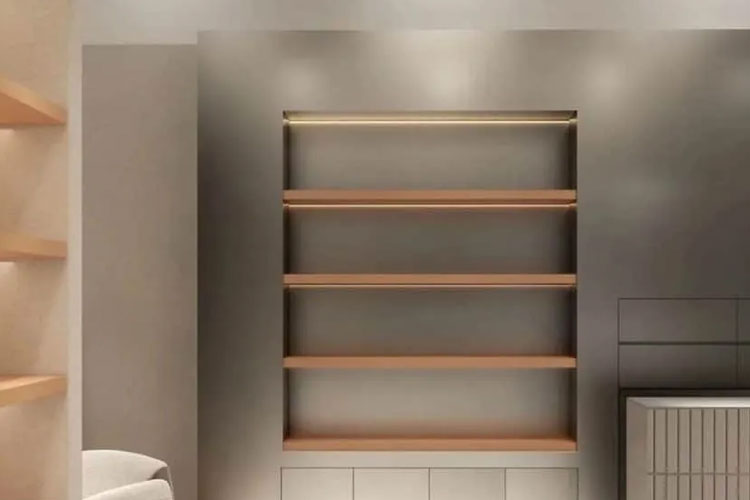

☑ Retail and Shopfitting: Shelves, counters, and wall panels for a sleek, modern look.
☑ Storage Solutions: Lockers, cabinets, and warehouse racking requiring both load-bearing capacity and surface protection.
☑ Customized Cabinets and Enclosures: Rugged protective structures for packaging, shipping, or specialized industrial applications.
