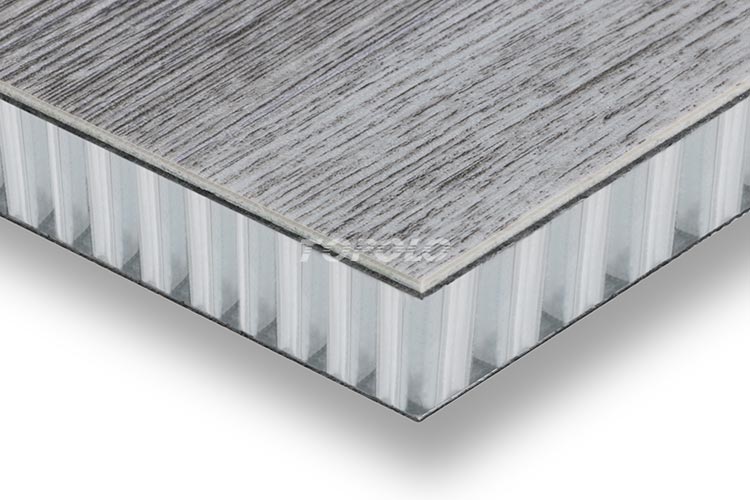

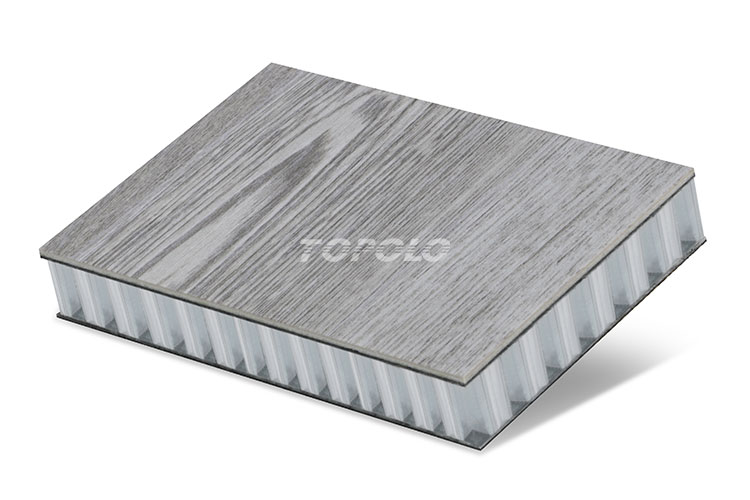

Panel Specifications
- Total thickness: 22mm (customizable: 10-50mm)
- Maximum width: 2.8m.
- Maximum length: 12m.
- Panel structure: Vinyl leather + CFRT sheet + PP Honeycomb + CFRT sheet.
- Top Skin: 2.0mm wood grain vinyl leather + 0.5mm CFRT sheet.
- Core material: 80kg/m³ Polypropylene (PP) Honeycomb.
- Bottom skin: 0.5mm CFRT sheet.
- Area weight: 7.8kg/m².
DESCRIPTION

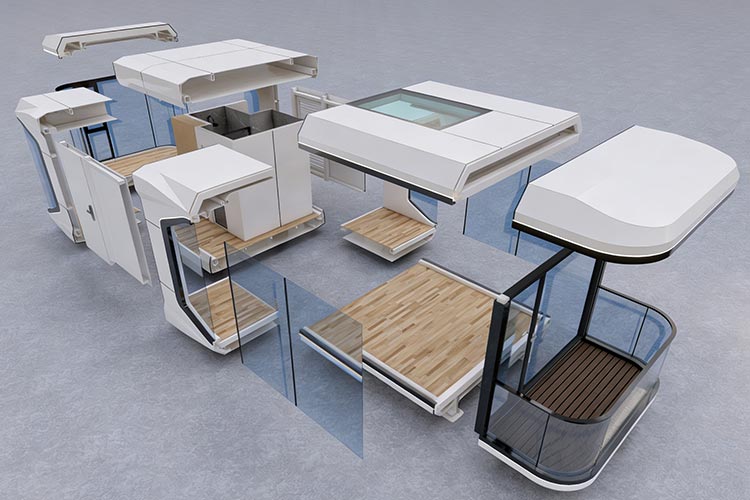

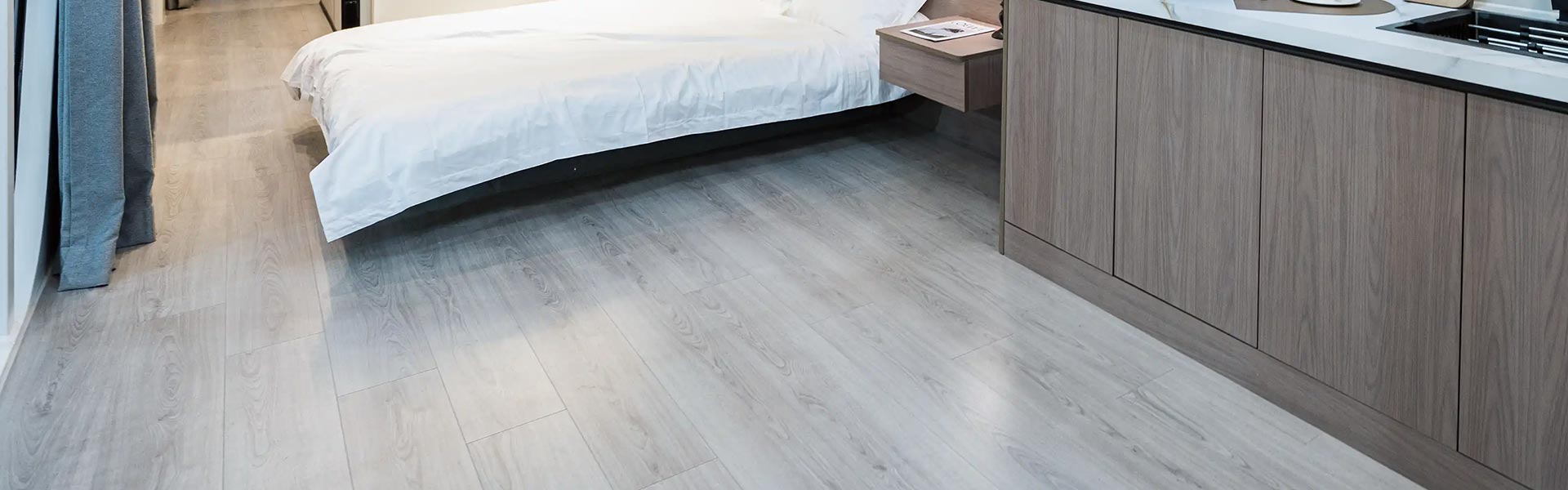

Traditional wood flooring has long been problematic in the application of luxury portable capsule homes: not only are initial purchase costs high, but the complex installation process also requires additional labor and time. Furthermore, long-term maintenance, such as moisture control, insect prevention, and warping repair, also demands significant investment. This contradicts the core positioning of capsule homes as “efficient and convenient,” and fails to meet their demands for a luxurious living experience. In contrast, the emergence of wood-grain vinyl leather composite flooring with an innovative integrated structure offers an ideal alternative that combines economy and high performance, bringing dual value innovation to both residents and builders.

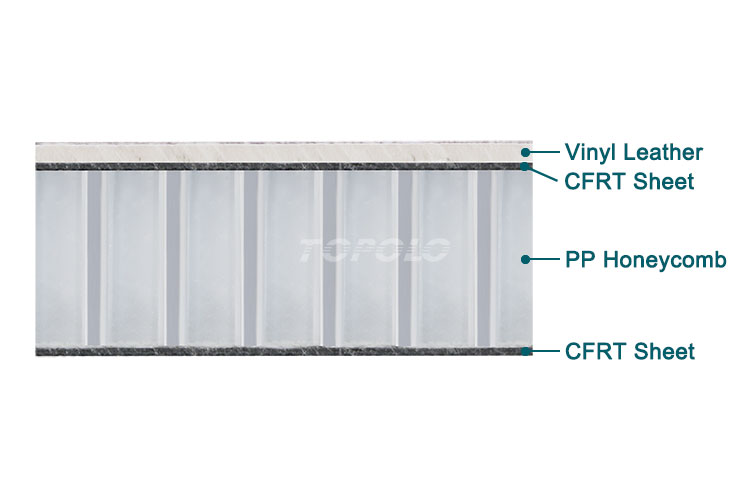

Structural Diagram

Advantages of Honeycomb Core Flooring
- Ultimate Lightweight Design
Honeycomb flooring utilizes a unique honeycomb structure combined with a continuous fiber reinforced thermoplastic (CFRT) surface composite process. This maximizes weight reduction while maintaining structural strength, resulting in a lighter texture and minimal impact on the overall load of the capsule house.
- Superior Load-Bearing and Deformation Resistance
The flooring’s static load capacity can reach 500kg/m², far exceeding the daily use requirements of a capsule house. Even with heavy furniture, it is not prone to collapse or deformation, and it is not easily damaged over long-term use.
- Waterproof and Moisture-Proof
Polypropylene material itself is non-absorbent and non-porous. Combined with a glue-free thermoplastic composite process, it completely eliminates problems such as dampness, mold, rot, and deformation. Even in rainy and humid areas or in situations where water accumulates on the ground, it maintains structural stability.

Surface Pattern
We offer a variety of vinyl leather textures, from modern minimalist finishes to classic wood grain finishes, providing a diverse range of flooring options to complement any interior theme.
