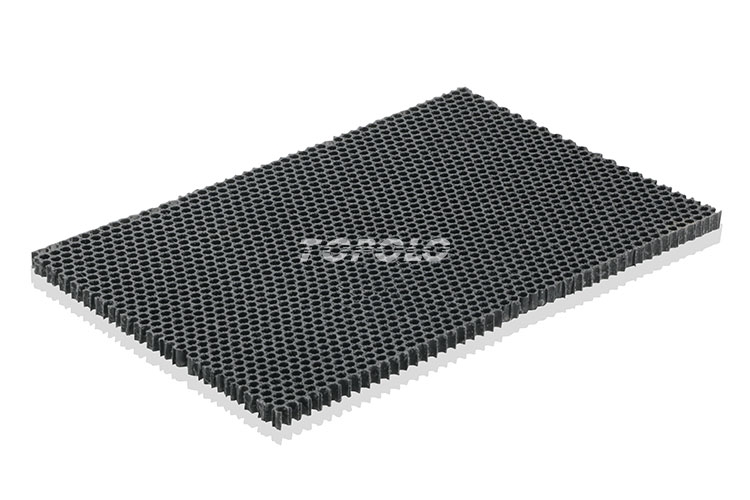

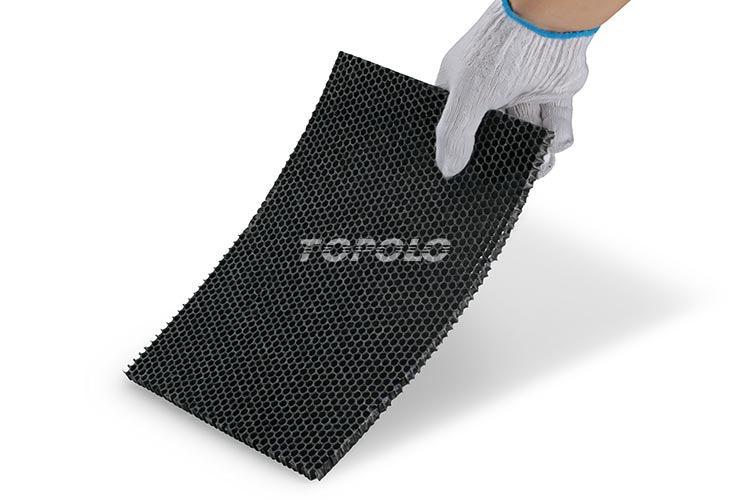

The honeycomb core, a biomimetic masterpiece resembling a honeycomb, boasts a far more diverse material composition than one might imagine. Carbon fiber honeycomb cores are made from carbon fiber and graphene-modified resin matrices using a special process, resulting in a material that is 30% lighter than aluminum yet stronger. It combines the high strength of carbon fiber with the excellent plasticity of the resin matrix, giving it both high specific strength and good processability.

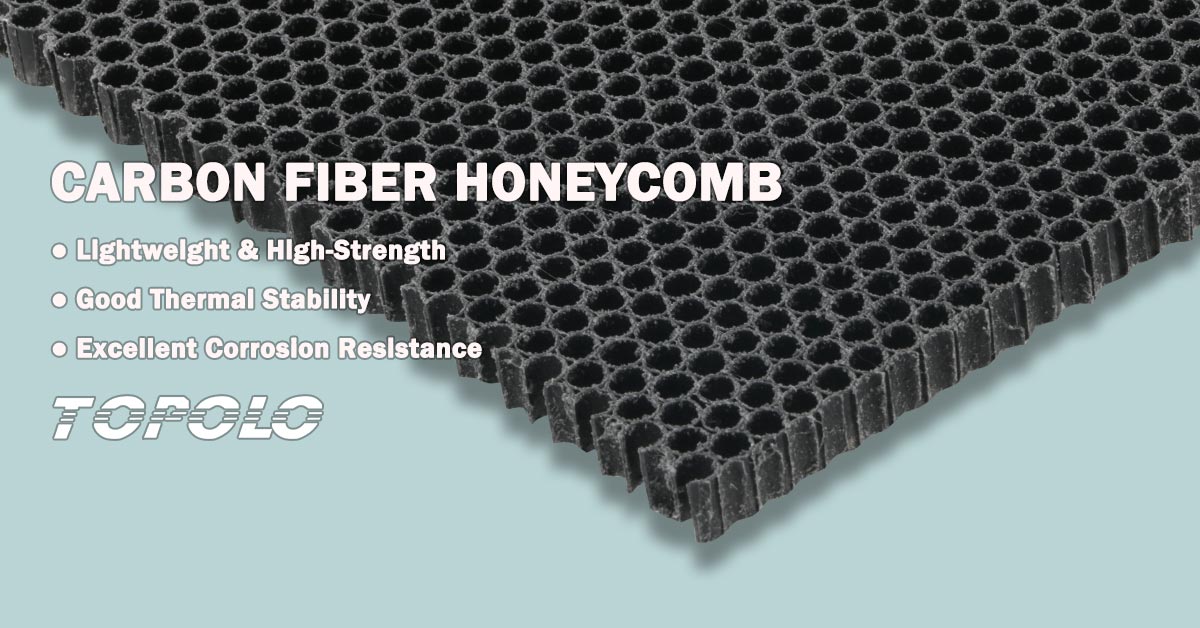

Design Features of Carbon Fiber Honeycomb Cores
- Lightweight and High-Strength
Carbon fiber honeycomb cores have a low density but extremely high strength, making them a natural advantage in product designs that demand both lightweight construction and high strength. Compared to existing energy-absorbing materials such as aluminum honeycomb, aramid honeycomb, stainless steel honeycomb, corrugated tubes, and foamed metal, carbon fiber honeycomb cores have higher compressive and flexural strengths at the same density, absorbing more impact energy and exhibiting less deformation in a short period of time.
- Good Thermal Stability
Carbon fiber honeycomb cores are capable of maintaining stable mechanical and structural performance under elevated temperatures. Their thermal resistance largely depends on the selected resin system, allowing them to be engineered for sustained use in high-temperature environments without significant degradation in strength or dimensional stability.
- Excellent Corrosion Resistance
Carbon fiber honeycomb cores demonstrate excellent resistance to a wide range of chemical agents, including acids, alkalis, and moisture. This makes them highly suitable for applications in harsh and corrosive environments, where long-term durability and reliability are critical.
Typical Specifications
| Item | Common Range |
|---|---|
| Density | 20 – 120 kg/m³ |
| Thickness | 3 – 100 mm |
| Cell Size | 3 mm / 6 mm / 9 mm |
| Cell Wall Thickness | 0.20 mm |
| Compressive Strength | 0.5 – 10 MPa (depending on density) |
| Shear Strength | 0.3 – 5 MPa |
| Service Temperature | 120°C – 300°C (depending on resin system) |
Compared with Other Honeycomb Core
| Property | Carbon Fiber Honeycomb Core | Aluminum Honeycomb Core | Nomex Honeycomb Core |
|---|---|---|---|
| Weight | ★★★★★ (Lightest) | ★★★ | ★★★★ |
| Strength | ★★★★★ | ★★★★ | ★★★ |
| Cost | ★ (Highest) | ★★★ | ★★★★ |
| Corrosion Resistance | ★★★★★ | ★★★ | ★★★★★ |
| Temperature Resistance | ★★★★ | ★★★★ | ★★★★★ |
Typical Applications
Carbon fiber honeycomb cores are frequently used in applications requiring a strict strength-to-weight ratio.
Aerospace
Its advantages lie in its superior mechanical properties, excellent ablation resistance, and outstanding weather resistance, enabling it to operate stably for extended periods in harsh environments.
Such as:
- Aircraft interior panels,
- Radome structures.
- Satellite structural components.
Transportation
Its widespread application stems from its minimal deformation under accidental impacts and its ability to rapidly absorb large amounts of impact energy, significantly enhancing passenger safety and structural protection.
Such as:
- Racing car structural components,
- Partial structures for high-end RVs / expedition vehicles.
