High-quality Aluminum Sandwich Panel Manufacturer
As a sandwich panel manufacturer, TOPOLOGROUP produces high-quality foam core aluminum sandwich panels and provides customized solutions.
Our Services:
- Customization based on sample requirements.
- Optimized sandwich panel design.
- Assembly accessories available.
Specifications
| Aluminum Grade | 1050, 1060, 1100, 3003, 3105, 3004, 5052, 5083, 5754, 6061, 6063, 6082, etc. |
| Aluminum Thickness | 0.1-6.0mm. |
| Aluminum Surface Treatment | Anodizing, painting, embossing, brushing, sandblasting, polishing, etc. |
| Core | XPS (Extruded Polystyrene) foam. (Density: 35-50kg/m³). |
| PET (Polyethylene terephthalate) foam. (Density: 60-300kg/m³). | |
| PU (Polyurethane) foam. (Density: 28-50kg/m³). | |
| PVC (Polyvinyl Chloride) foam. (Density: 40-250kg/m³). | |
| Composite Method | Adhesive. |
| Total Thickness | 5.0-150mm. |
| Length | ≤12000mm. |
| Width | ≤2600mm. |
Panel Structure
Foam core aluminum panels are composed of two layers of aluminum sheets and a core material in between. The outer aluminum sheet provides load-bearing and protection, while the foam core provides weight reduction, insulation, and support, ultimately forming a “lightweight, high-strength, and multifunctional integrated” composite material.

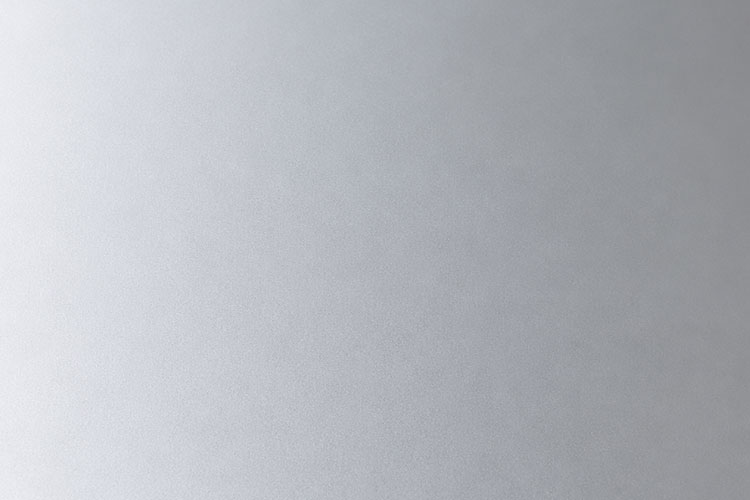

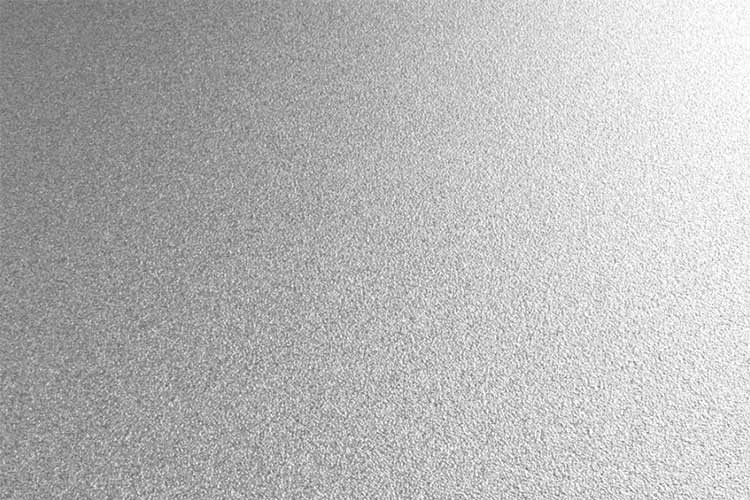

Common Surface Treatments
Due to the easy processability of aluminum, the surface of aluminum sheets can be processed into a variety of rich textures and colors while maintaining long-lasting physical and chemical stability. To learn more about customizable surface styles, please send us your requirements.
Comparison of Aluminum Panels with Different Foam Cores
Aluminum Skin XPS Foam Sandwich Panels
- Features: waterproof, heat-insulating, high hardness, and moderate price.
Aluminum Skin PET Foam Sandwich Panels
- Features: waterproof, high hardness, low price, and recyclable.
Aluminum Skin PVC Foam Sandwich Panels
- Features: high hardness, heat-insulating, waterproof, flame-retardant, and balanced performance.
Aluminum Skin PU Foam Sandwich Panels
- Features: light weight, low hardness, and excellent heat preservation.
Applications
In many industries, the comprehensive performance provided by foam core aluminum panels is difficult to replace with other materials.
Box Truck Bodies & Trailers
Aluminum foam core sandwich panels reduce the weight of the body, enhance the strength of the body, and provide insulation, such as refrigerated trucks, dry cargo trucks, ambulances, fire trucks, etc.
RVs
RVs built with high-strength aluminum foam core panels can adapt to various extreme environments and terrains.
Modular Buildings
Warehouses, cold storage, mobile homes, equipment shells and other outdoor facilities built with aluminum sandwich panels can improve the ability to resist natural disasters.
Building Curtain Wall Panels
The exterior walls of buildings covered with aluminum composite panels can improve the aesthetic effect of the building.
Building Interiors
Wall panels, ceilings, partitions, door panels, etc.
Other Applications
Public transportation, clean energy, ships, etc.
Manufacturing Craftsmanship
High-quality materials and advanced technology
- The panel surface is flat and does not bubble.
- The core material and the aluminum sheet are tightly bonded and do not delaminate.
- The panel structure is stable, high compressive strength, and resistant to deformation.
In addition to selecting high-quality foam core materials and aluminum alloy sheets, the production process of foam core aluminum panels is crucial to their quality. The production of sandwich panels is processed by cold pressing at TOPOLOGROUP. On the fully automatic sandwich panel production line, the glue is evenly applied between the panel and the core material through the glue spraying machine, and then the composite panel is compacted in a vacuum high-pressure environment.
Aluminum facing
- High-performance aluminum alloy sheets, available in different grades.
- Customizable aluminum surface coating colors and patterns.
Premium foam core material
- Our foam core materials are ISO certified and meet the environmental protection levels of markets such as Europe, the United States, and Japan.
High-performance adhesive
- High temperature resistant and waterproof adhesive keeps the aluminum sandwich panel highly peelable, adapting to extreme outdoor and indoor environments.
CNC Machining
- Easily complete complex designs with exceptional precision and consistency.
To learn more about customized solutions for foam core aluminum panels, please contact us.
