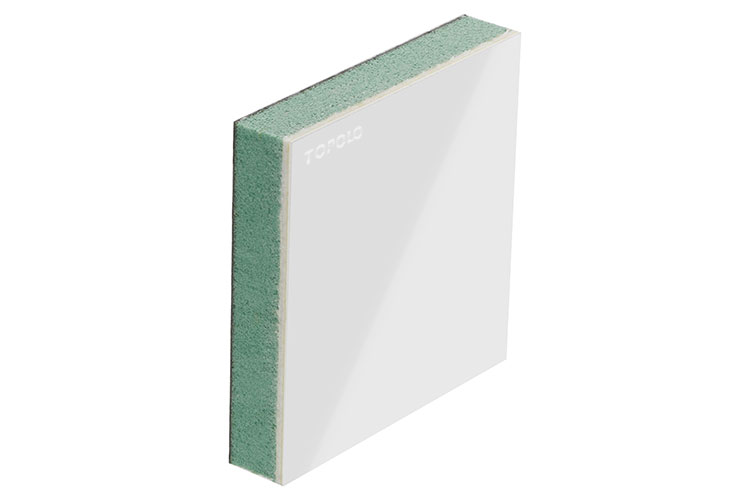

PET foam is a recyclable and environmentally friendly material, which is widely used in various industries in today’s advocacy of sustainable economic development. The caravan body structure constructed with PET foam sandwich panels is strong, durable, and in line with environmental protection trends. It is a very suitable building material for modern RVs.
Applicable parts
- Roof panels
- Side panels
- Front and rear panels.
Suitable RV types
- Caravans.
- Off-road trailers.
- Adventure trucks.
- Motorhomes.
- Truck campers, etc.
Description
Specifications
| Total Thickness | 30mm. (Customized: 10-120mm) |
| Width | Max 2.6m |
| Length | Max 12m |
| Outer Skin | 1.2mm gelcoat FRP Sheet. (Customized: 0.7-5.0mm) |
| Energy Absorbing Layer | 3.0mm LWRT (lightweight reinforced thermoplastic) sheet. |
| Core | PET (Polyethylene terephthalate) foam. (Density: 100kg/m³) |
| Internal Skin | 1.2mm CFRT(Continuous Fiber Reinforced Thermoplastic) sheet |
| Standard Area Weight (Thickness: 30mm) | 11.44kg/㎡. |
Structural Diagram
Product Features
- The surface of the outermost gel coat FRP is smooth and easy to clean, giving the caravan a beautiful appearance. The color of FRP is customizable and users can choose any color within the RAL color range.
- Using LWRT material as the energy absorption layer can improve the overall impact strength of the panel and reduce damage to the internal core material.
- The performance of the recycled PET foam core is no different from that of virgin PET foam.
- The internal skin CFRT is a lightweight and high-strength thermoplastic composite material with higher compressive resistance than thermosetting FRP sheets.
