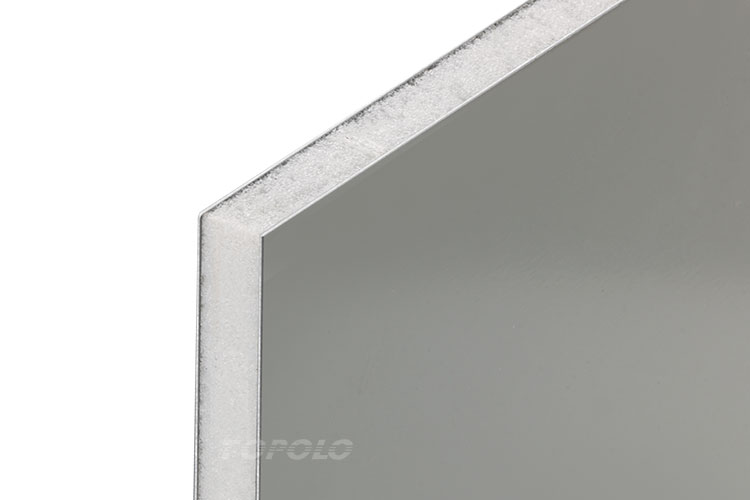

Home » Sandwich Panels » PET Foam Core Panel Series
Specifications
- Thickness: 15mm (Customizable: 5.0-120mm).
- Length: ≤12m.
- Width: ≤1.5m.
- Skin: 0.3mm PPGI steel sheet. (Customizable colors)
- Core: PET (Polyethylene terephthalate) foam. (Density: 100kg/m³).
- Area Weight: 6.0kg/㎡.
Description
- High-Strength Steel Surface: Utilizing G550 high-strength galvanized steel treated with a PVDF (polyvinylidene fluoride) coating, it offers excellent corrosion resistance, UV aging resistance, and weather resistance, maintaining a stable and smooth surface even after long-term outdoor exposure.
- Lightweight PET Foam Core: The core material utilizes recyclable PET foam with a closed-cell structure. It offers low density, minimal water absorption, and excellent compressive and shear resistance, as well as thermal stability.
Applications
Modular buildings
- Mobile homes
- Storage rooms
- Laboratories
- Clean rooms, etc.
Vehicle bodies
- Dry cargo truck bodies
- Lightweight trailers
