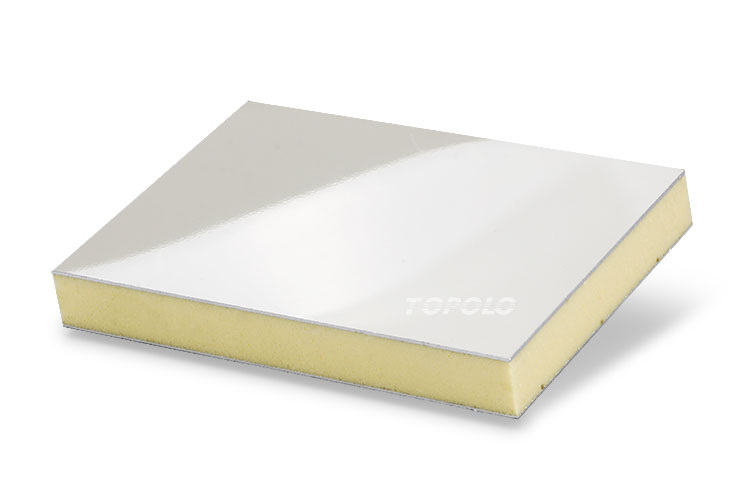

Aluminum foam sandwich panels are an excellent choice for truck body applications that require strength, lightness, and thermal insulation, balancing durability with energy efficiency.
Specifications
- Panel Structure: Aluminum sheet + foam core.
- Aluminum Alloy Grade: 3003, 3004, 5052, 5005, 5083, 6061, etc.
- Surface Coating：Polyester (PE); Fluorocarbon (PVDF).
- Surface Color: RAL series.
- Core: XPS (Extruded polystyrene) foam, PU(polyurethane foam), PET (Polyethylene terephthalate) foam.
- Width: Maximum 2.6m.
- Length: Maximum 12m.
- Thickness: 10-150mm.
Description
Aluminum is naturally resistant to rust and corrosion, even in harsh environments such as coastal areas or areas with high humidity. This long life helps reduce maintenance costs and extend the life of the truck body. While the initial cost of aluminum foam sandwich panels may be higher than other materials, its many properties provide ongoing economic benefits.
- Lightweight and high strength
- Thermal insulation
- Corrosion resistance
- Impact resistance
- Recyclable
Aluminum foam sandwich panels can be designed and manufactured to specific truck bodies, including box size, insulation thickness and exterior coatings. They can be customized for a variety of applications, from refrigerated trucks to dry goods transporters.
